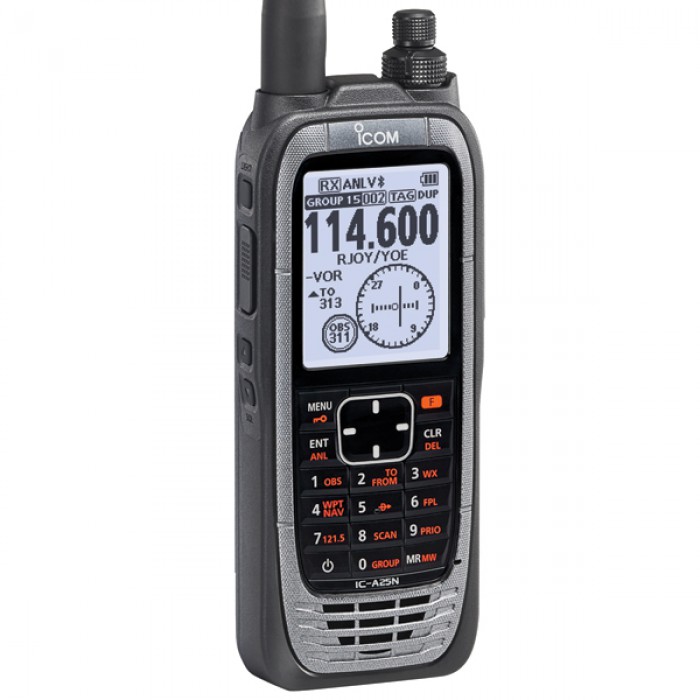

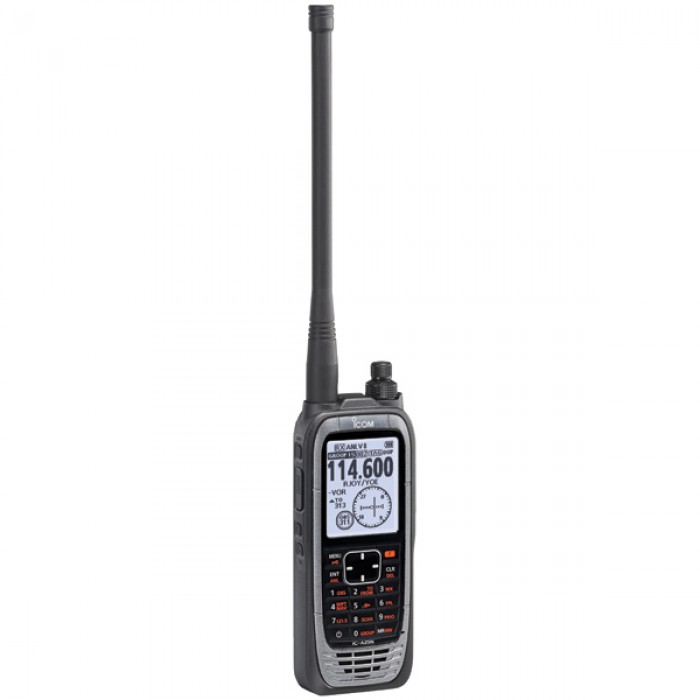

ICOM A25NE VHF AIR BAND NAV / COM / GPS RADIO WITH BLUETOOTH
The A25N is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation. This handheld features built-in Bluetooth®, GPS and VOR navigation.
- Output power: 6W typ. (PEP), 1.8W (CW)
- Frequencies: TX (COM); 118.00-136.975MHz
RX (COM/NAV) ; 108.00-136.975MHz
RX (Weather) ; 161.650-163.275MHz - Channel spacing: 8.33/25KhZ
- Channels: 200 (20CH x 10 banks)
- Battery life: 2350mAh Li-ion battery, up to 10.5 hours
Typical operation with Tx:Rx:Stand-by duty ratio = 5:5:90, (Bluetooth OFF, GPS ON) - Version: Communications plus navigation
Large easy to use LCD
The A25’s large 2.3-inch LCD provides user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the nighat mode makes it easy to read in the dark.
Navigation functions
Built-in GPS and Bluetooth® have redefined navigation in the A25N. Design flight plans with an Android™ or iOS™ device and import them into the A25 with the Bluetooth® feature. While using GPS, the waypoint NAV will guide pilots to their destination. Up to 10 flight plans and 300 waypoints can be stored in the A25. Other navigational features, like VOR indicators, can help keep a pilot’s heading precise and alert them if they divert from course. All these functions and more increase safety up in the air.
VOR navigation functions
- CDI (Course Deviation Indicator) looks like a real VOR instrument and displays any deviation from your course.
- OBS (Omni Bearing Selector) enables you to change course from your original flight plan.
- TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
- ABSS (Automatic Bearing Set System) enables you to set the current course as a new course.
